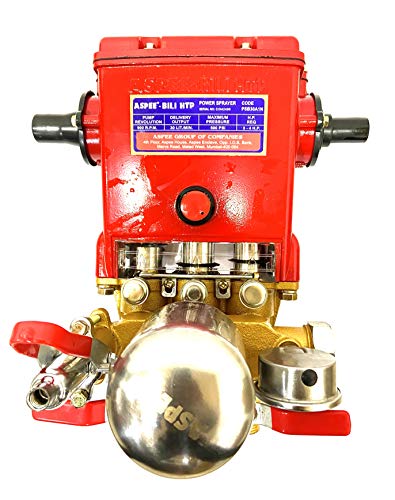

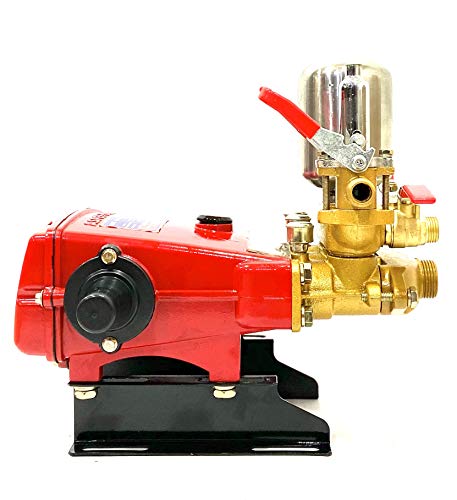

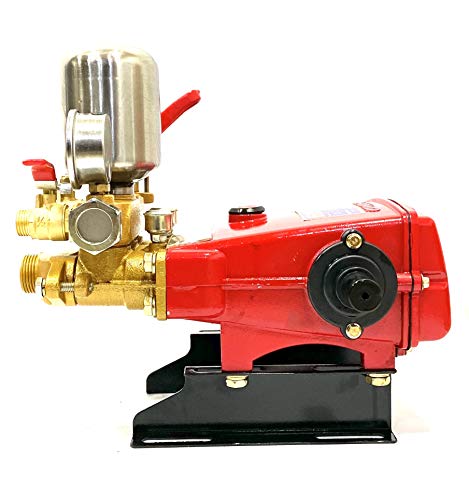

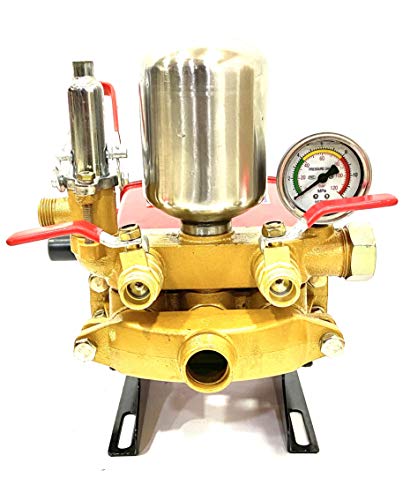

Bili HTP Power Sprayer

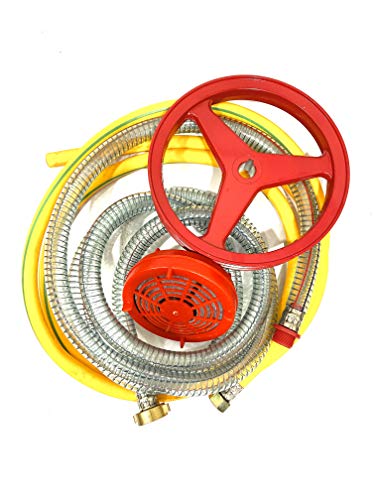

ASPEE-BILI HTP horizontal triplex power sprayer unit, developing up to 500 psi (35 bar) pressure and giving free discharge of 30 lit/min at 900 rpm. Sprayer Supplied with pulley, pressure vessel, pressure indicator, by pass cum pressure regulator valve, 3 meter long by-pass & suction hose with strainer, couplings for delivery hose.
Special Features :
Heavy duty & efficient sprayer
Heavy duty industrial quality brass stamping material
Stainless steel piston
All working parts are lubricated by oil bath
Aluminum pressure die casting connecting Rod
Control valve assly. With pressure regulator, by-pass
Pulsation free spray
Develop pressure up to 500 psi max.
Sturdy/rugged construction
Brand : ASPEE
Model: PSB30A1N
Material of Construction: C.I.
Suction capacity (lpm): 30
Normal working pressure: 100 – 200 PSI
Max. Pressure: 500 PSI
Pump revolution: 950
Power (hp): 3 ~ 4 HP
L X W X H (in mm): 340 X 300 X 295
Weight (without oil): 7.5 kg (approx) 0 psi max.
Sturdy/rugged construction
